Cooking Process
Basic Tofu Production Process
- Soaking
- Grinding
- Cooking
- Separating
- Coagulating
- Press & Forming
- Cut & Pack
- Pasteurizing(Boli&Cool)
Other
- All-In-One Mini-Star
- Desk-top Type
- Tools
For "High-mix Small-lot production".
Products are made as specified groups or amounts, within a time frame.
For "Low-mix Large lot production".
Products are consistently produced without interruptions.

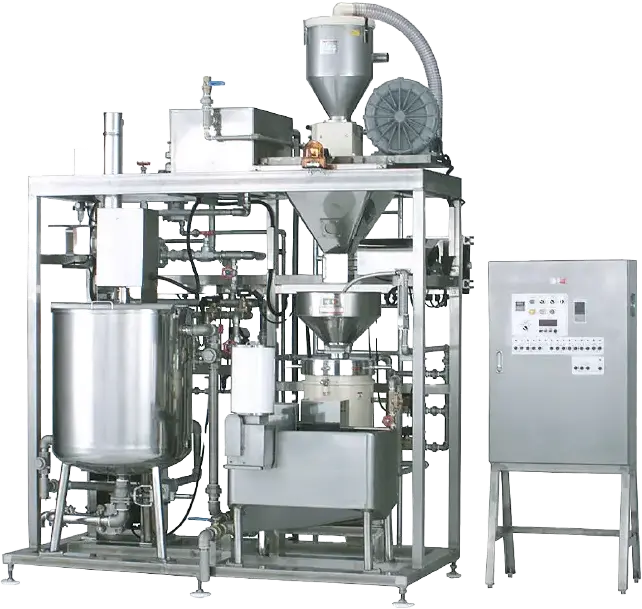

Soy-Boy
Batch Production/Medium Scale

Designed for silken/firm tofu and deep-fried tofu
[Features]
- Heating with a large amount of low-pressure steam for a short time makes soymilk flavor rich. MASE-designed agitator helps heating evenly.
- Non-defoamer soymilk production as an option.
- Semi-automatic type: Feeding soaked soybeans manually.
Automated processes from grinding to heating. - Full-automatic type: Fully automated processes
- Customizable: Single, double, or triple cookers.
Capacity (Example)
The capacity varies by the milk brix, heating temp., and time.
Electrical capacity and sizes vary by the specifications
Size | Regular | Large | ||
---|---|---|---|---|
Type | Single | Single | Double | Triple |
Dry beans (w/defoamer) | 48kg /H | 78kg /H | 180kg /H | 270kg /H |
Dry beans (w/o defoamer) | 30kg /H | 60kg /H | 120kg /H | 180kg /H |
Electricity | 4.6 KW | 7.4 KW | 9.7 KW | 10.4 KW |
Dimensions WxDxH(mm) | 1,800x1,000x2,650 | 2,500x1,200x3,200 | 2,500x1,200x3,200 | 4,500x1,200x3,200 |

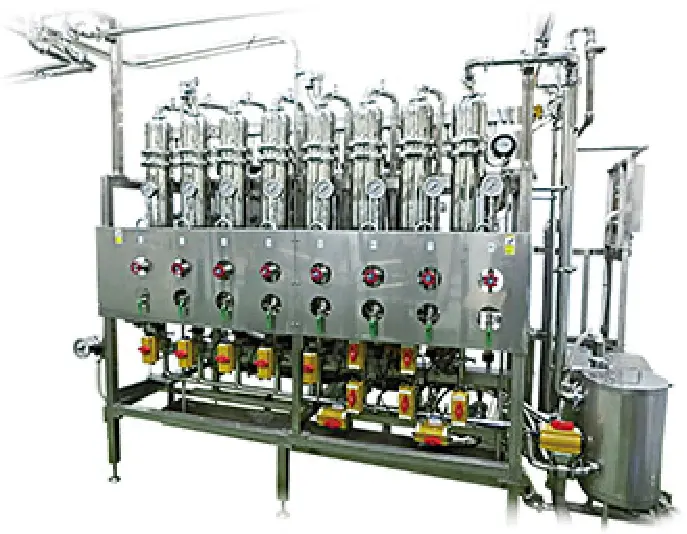

Super Steam Line M-II
Continuous Production/Large scale

Designed for silken/ firm tofu and deep-fried tofu
[Features]
- 3 types of heating and automatic steam control.
- Easy! Steam is automatically controlled and adjusted by proportional control valves.
- Economy type without proportional control valves is also available.
- Non-defoamer soymilk production as an option.
Capacity (Example)
The capacity varies depending on the kind of soybean and the amount of water added.
With defoamer | Without defoamer | ||||||
---|---|---|---|---|---|---|---|
Model | Volume | Dry beans | Dimensions WxDxH(mm) | Model | Volume | Dry beans | Dimensions WxDxH(mm) |
M-II40 | 227L | 240kg/h | 2,500x1,150x2,600 | M-II40N | 249L | 240kg/h | 2,750x1,150x2,600 |
M-II50 | 249L | 300kg/h | 2,750x1,150x2,600 | M-II50N | 271L | 300kg/h | 3,000x1,150x2,600 |
M-II60 | 271L | 360kg/h | 3,000x1,150x2,600 | M-II60N | 293L | 360kg/h | 3,250x1,150x2,600 |
