Mini-Star
Small Scale Soymilk Plant
CE marking Mini-Star is available!
Designed for silken, firm, and deep fried tofu
[Features]
- Suitable for small-scale production and labs.
- Made of stainless steel for hygienic production.

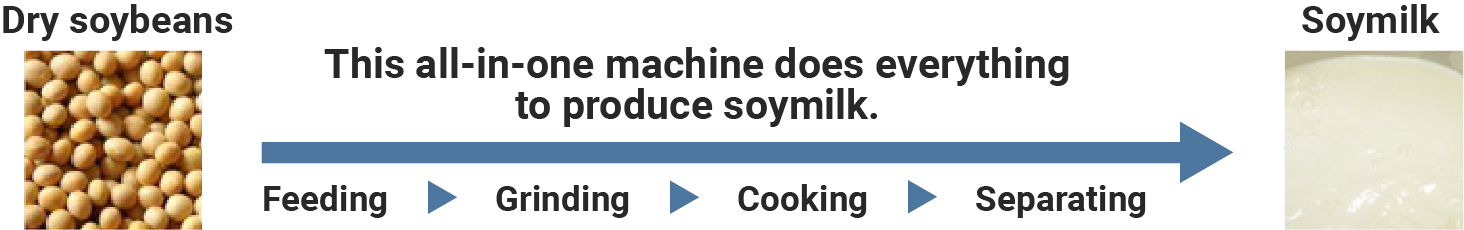

- Consisted with a full set of soybean constant feeder, grinder, cooker, and a squeezer.
- Non-defoamer production type available as an option.

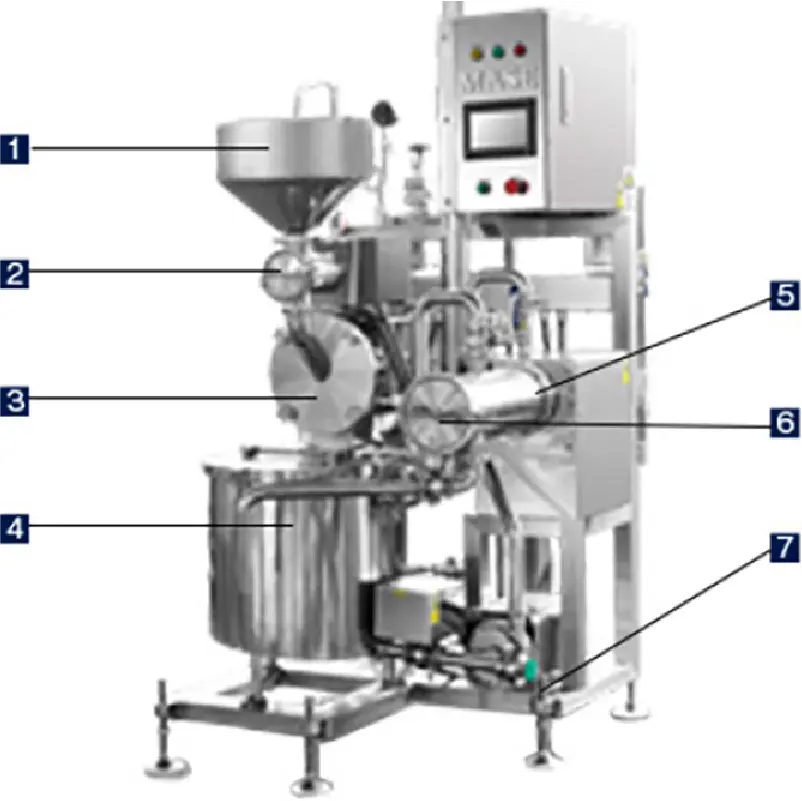

Full functionality in a compact design
- Inlet of soaked soybeans
- Soybean constant feeder
- Grinder
- Cooker
- Separator
- Okara exit
- Soymilk exit
| Steam amount | At least 2L / min. during heating, Boiler capacity: 120kg / h |
|---|---|
| Electricity | 3 phases / Single phase, 3kW |
| Dimensions (mm) | W160xD1465xH2045 |
| Max. Capacity | 30L of soymilk per batch |
