Forming Box and Tools

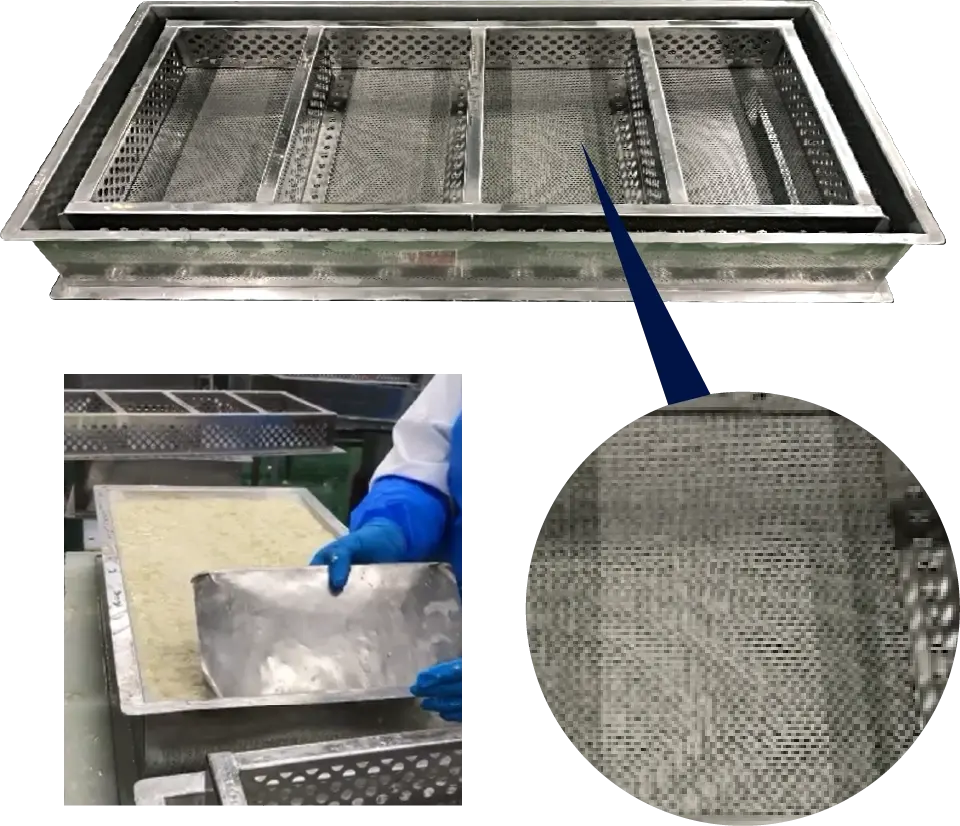

NC（Non-cloth）forming box 2 parts type・3 parts type
Non-Cloth
For Firm tofu and deep fried tofu
[Features]
- Industry’s first forming box without using cloth! MASE exclusive patent technology. [Material : Stainless steel]
- Since no cloth is used, products remain hygienic.
- Cost for washing cloth will be eliminated.
- Cutting back labor is feasible by installing a return type forming box washing machine.
- Custom made for the size of your tofu.
Forming box washing machine recommended for large production volume using the NC forming box.
| Type of tofu pack | Tofu size per piece (mm) | Size of forming box (mm) | Weight of forming box |
|---|---|---|---|
| 2B | 103x67x67 | 735x345xH105 | Approx. 27 kg |
| 6B | 105x90x45 | 852x455xH110 | Approx. 31 kg |
| 7B | 150x84x34 | 600x420xH90 | Approx. 19 kg |
Option: You can also add reinforcements to increase the strength.
Forming Box and Tools
2 parts type forming box
Cloth
Needed
For firm tofu
[Features]
- Most popular cloth wrap type in ｗestern part of Japan.Suitable for making high quality tofu in a small lot. [Material : Stainless steel, Aluminum ]
- Options for the plates are slit type, or punching plate on all sides.
- Custom made for the size of your tofu.

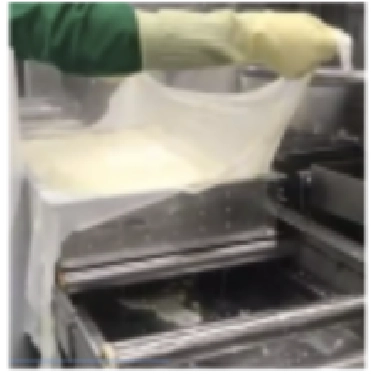

Forming box using cloth

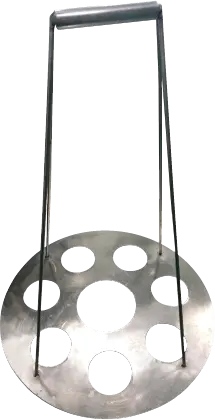

Mixing tool

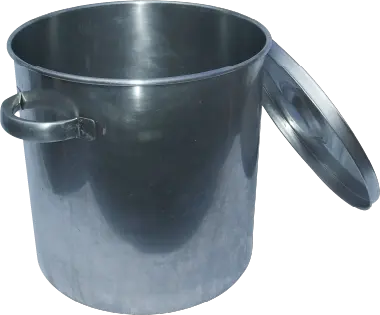

Gathering bucket

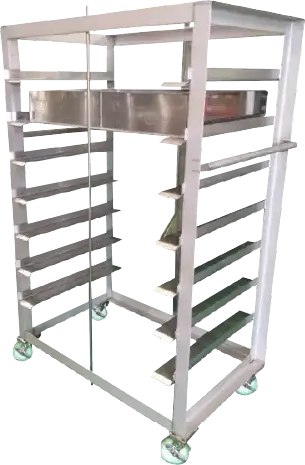

Forming box cart
Forming Box and Tools

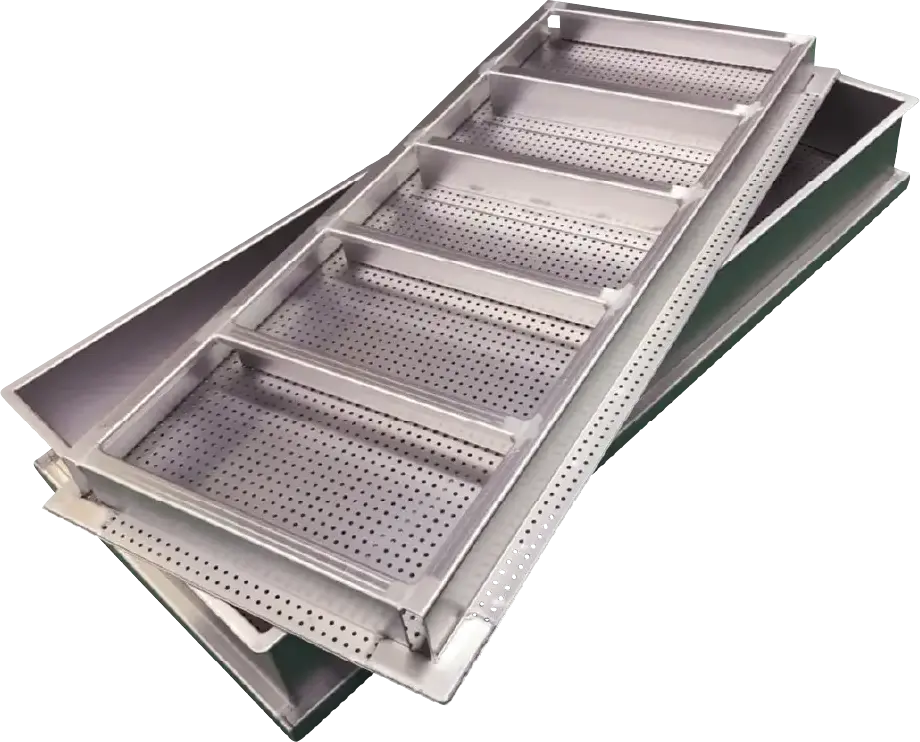

3 parts type forming box
Cloth
Needed
For firm tofu and deep fried tofu
[Features]
- Suitable for producing multiple variations of products for its workability and convenience.[Material : Stainless steel, Aluminum ]
- Options for the plates are slit type, or punching plate on all sides.
- Custom made for the size of your tofu.

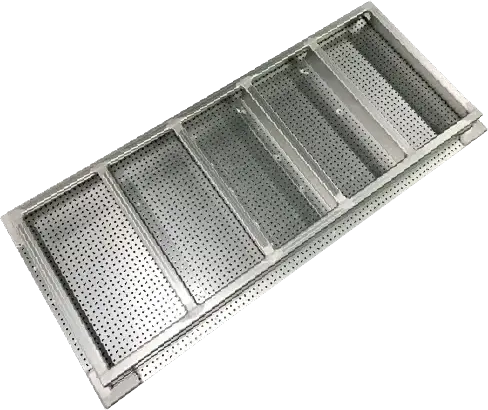

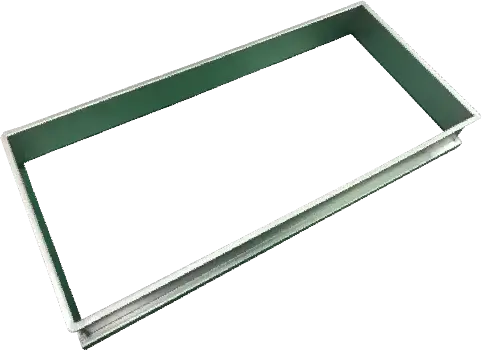

Frame: standard or crimp type
Lid: Some different designs available.

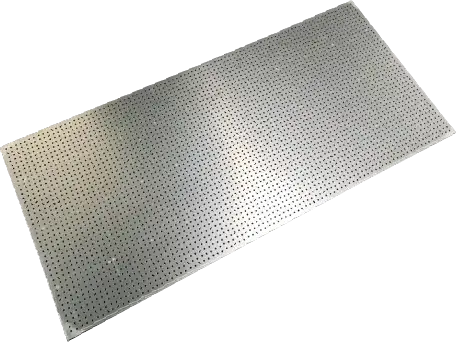

Bottom plate：3.4φ, 5φ

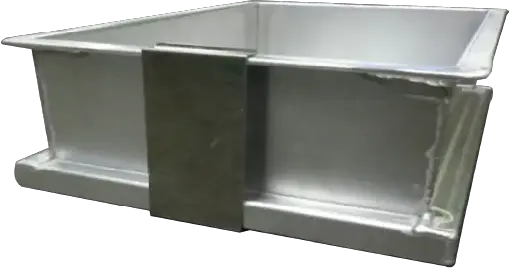

Clips
Material: Stainless steel Clip for preventing leakage between the bottom plate and frame.

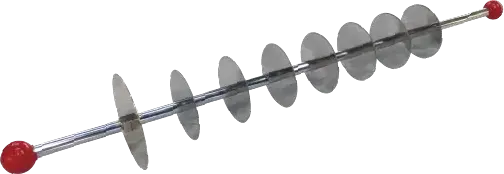

Roll cutter
Number of blades are determined according to the dimension of your tofu.
Forming box using cloth
Mixing tool
Gathering bucket
Forming box cart
